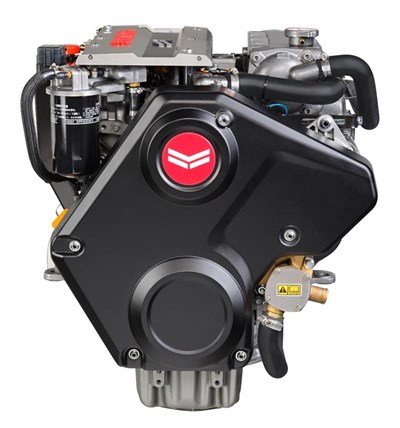

YANMAR 3JH40 Marine Diesel Engine 40hp
$10,785.00
Technical Specification
RATED OUTPUT: 29.4 kW / 40 mhp
RATED SPEED: 3000 rpm
DISPLACEMENT: 1.642 L [100 cu in]
CYLINDERS: 3 in-line
BORE X STROKE: 88 mm x 90 mm
TYPE: 4-stroke, vertical, water-cooled diesel engine
EMISSION COMPLIANCE: EU: RCD 2, BSO II, EMC. US: EPA Tier 3.
WARRANTY: 2 + 3 year extended warranty
WINNER OF THE MIAMI 2018 INNOVATION AWARD FOR THE INBOARD ENGINE CATEGORY.
YANMAR introduces the 3JH40 as the world’s smallest common rail
in displacement, dimensions, and weight.
The 3-cylinder 3JH40, with an output of 40 mhp, will enable a whole new category of smaller leisure boat owners and commercial vessel operators to benefit for the first time from the efficiency and performance advantages associated with the most recent electronically-managed CR fuel-injection technology.
With an output of 40 MHP @ 3000 rpm (29.4 kW @ 3000 rpm), the 3JH40 is the smallest common rail inboard marine diesel in:
Displacement, with only 3 cylinders measuring 1.642 L (100 cu in
Physical size, measuring 774 x 580 x 632mm
Weight, measuring 192kg without gear
Through common rail technology, the 3JH40 offers minimal fuel consumption and exceptionally low noise and emission levels, exceeding EPA Tier 3 and EU RCD Tier 2 emission regulations for virtually smoke and odor-free operation.
The 4-stroke, water-cooled 3JH40 is an ideal solution for new builds and repowering applications, specifically monohull sailing yachts and catamarans up to 45ft, small motor boats or sloops, and light duty commercial craft.
