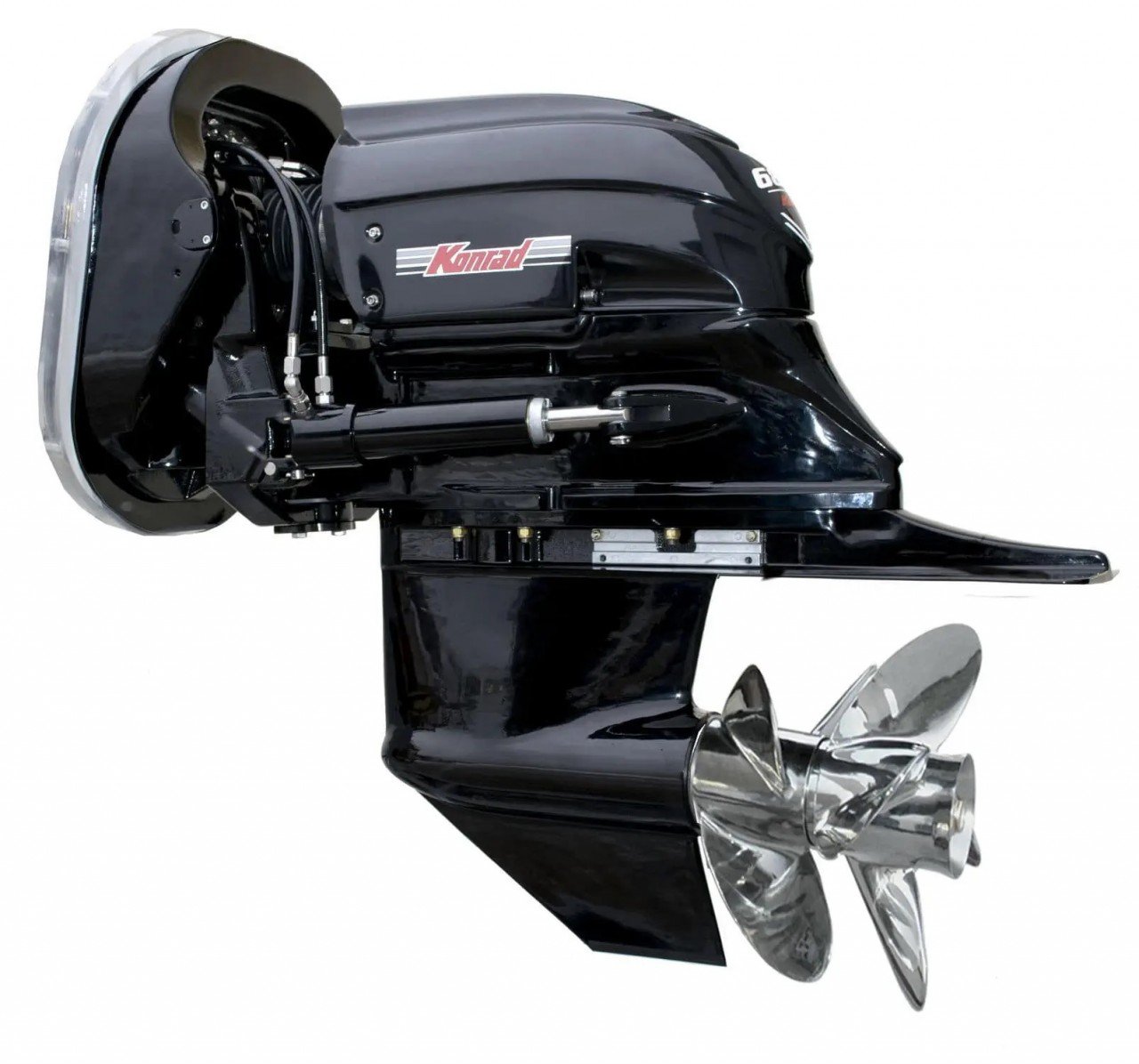

Konrad 660B Sterndrive
$15,450.00
OPERATIONAL SPECIFICATIONS
Application Recreational or Commercial Engine Coaction Direct or Remote (Jack or CV Shaft)Exhaust None through the sterndrive Gear Ratios1.07:1n1.23:1n1.31:1n1.50:1n1.67:1LubricatioFull Immersion, seventeen quarts with external reservoir Propeller Diameter Range – 13.25 in – 16 in (33.7 cm – 40.6 cm)Rotation Counter rotation Steering Anglen50° range Transmission Reversing transmission required Transom Mounting Template available per application Transom Requirementsn13° angle nominal, 6.4 mm – 79.4 mm (1/4 in – 3 1/8 in) thick Trim/Lift System Approximate -6° to +10° trim, twin cylinders with electrohydraulic pump Approximate 30° of total lift range Water Pickup None through the sterndrive.
The Konrad 660B is well known for fast performance driven applications, such as extreme government patrol and military intercept. The 660B is built to meet the demand for speed and precision. Designed for 7-15 meter (23-50 foot) vessels seeking speeds up to 60 knots (70 mph):
INTENDED FOR MILITARY, COMMERCIAL, MEDIUM DUTY, AND RECREATIONAL PERFORMANCE THE KONRAD 660B OFFERS
* Oversized bearings* Thicker walled casings* Dual, counter rotating propellers* Continuous oil circulation for cool operation* No corrosive exhaust through driven* Precision machined super alloy gears* No failure-prone cone clutch* Minimal maintenance required
Standard Equipment (Supplied with Sterndrive)
* Complete sterndrive assembly* Ier and outer transom assembly* Digital trim display and Trim pump assembly* Oil reservoir with low level sensor for use in hull* Drive comes full of sterndrive lubricant* Two quarts of power trim fluid* Transom mounted; integrated trim and steering cylinders
Additional Equipment Required
* Transmission* Propeller* Steering package* Drive shafts/transmission tail piece* Bellhousing adapter* Flywheel coupling* Transmission oil cooler* Alignment tool
