FNM 30HPE 270 Inboard Marine Engine
$17,690.00
maximum power : 198,5 kW, 270 HP, 4100 rpm maximum torque : 530 Nm, 2300 rpm Cylinder : 4 in line Displacement : 2.934 cc Bore stroke : 95,8 x 104 mm Dry weight : 320 kg Cooling down : Water Combustion : Common rail direct injection Aspiration : Supercharged and inter cooled Emissions : RCD stage 2nDimension : 753 (H) x 730 (L) x 750 (W)

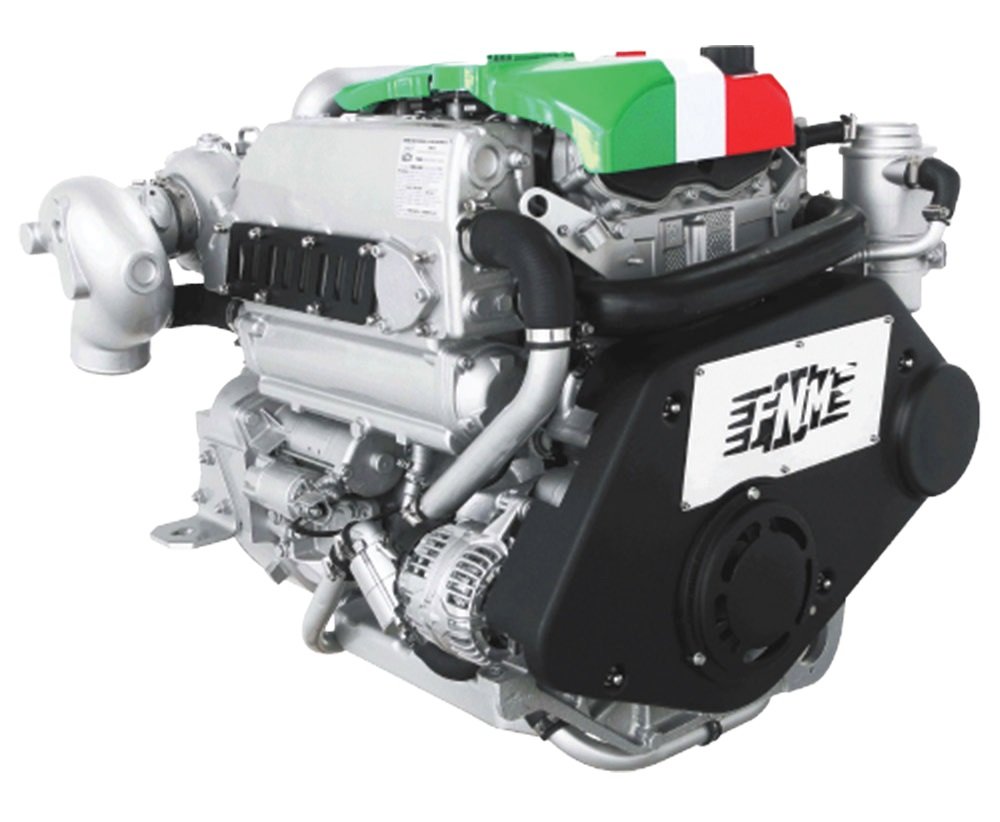

New FNM 30HPE 270 Inboard Marine Engine FNM 30HPE engine is conceived according best-seller F1C platform requirements. The engine uses a common-rail fuel injection system controlled by an electronic control unit developed in house, especially made for it. The result is a high power-to-displacement ratio unit.
Technical characteristics Engine block and head
* Cylinder block made of cast-iro* Cylinder head made of aluminum* 4-valve per cylinder technology with hydraulic lash adjusters* Double overhead camshafts* Automotive-class availability of service and parts* Metal chain gear
Engine mounting
* Flexible engine mounting
Lubrication system
* Easily replaceable oil filter, on top of engine* Easily to inspect or replace oil separator, on top of engine* Double oil vapor filter technology* Integrated cooler with engine’s coolant
Fuel system
* Common rail fuel injection system* CMD proprietary ECU* Fuel filter with water separator and alarm
Air inlet and exhaust system
* Commercial-grade air filter* Oil vapors vented into inlet air* Exhaust elbow or raiser depending on application* Coolant-cooled turbocharger* Raw-water cooled intercooler
Cooling system
* Thermostatically regulated freshwater cooling* Thermal unit that integrates exhaust manifold, thermostat, tubular heat exchanger and expansion tank* Easily accessible seawater impeller pump
Electrical system
* 12V standard two-pole electrical system* 12V-2,3kW starter* Alternator 12V-110An* Emergency stop button on engine’s ECU* CANBUS Panel with 8m extension and digital display of engine data
